Trench Map Conventional Signs

Discussion in 'Resources' started by Hill 40, Jan 29, 2009.

  1. Hill 40

    Hill 40 New Member

    Though far from a complete listing, here're some conventional signs tables from some trench maps of the 1916-18 period for reference...

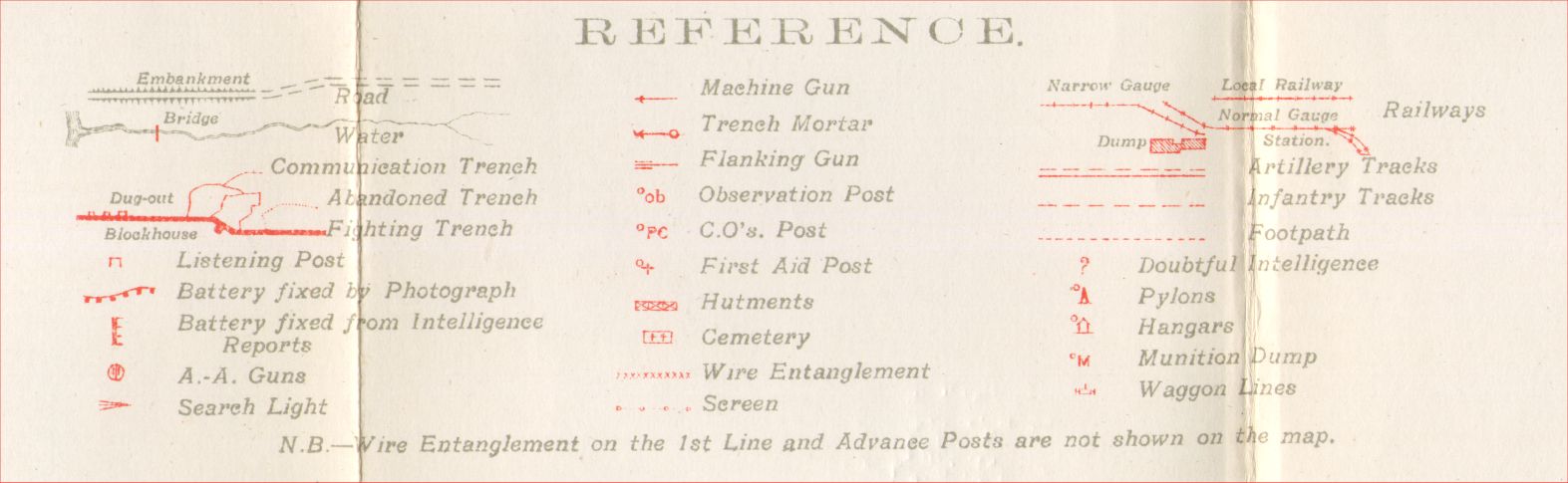

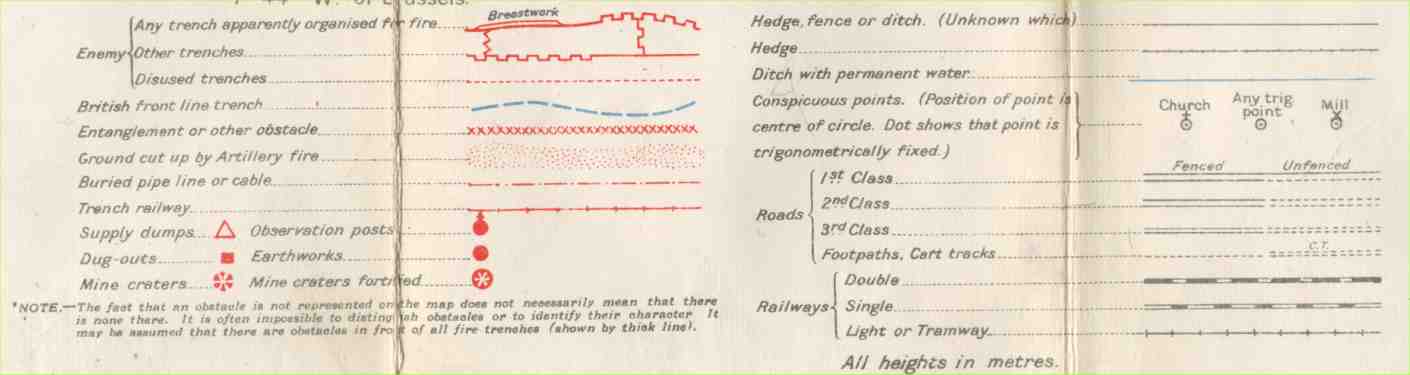

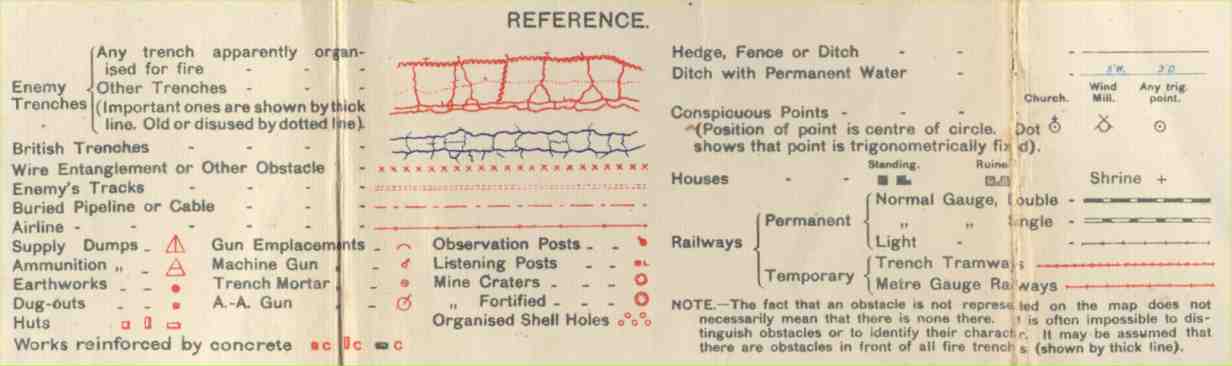

    1. British


    Attached Files:

  2. Hill 40

    Hill 40 New Member

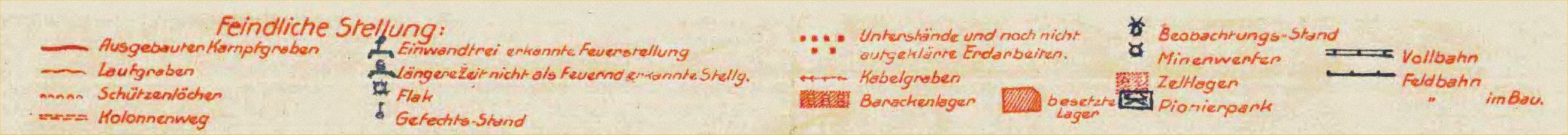

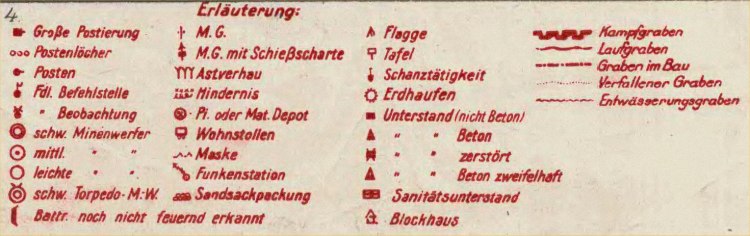

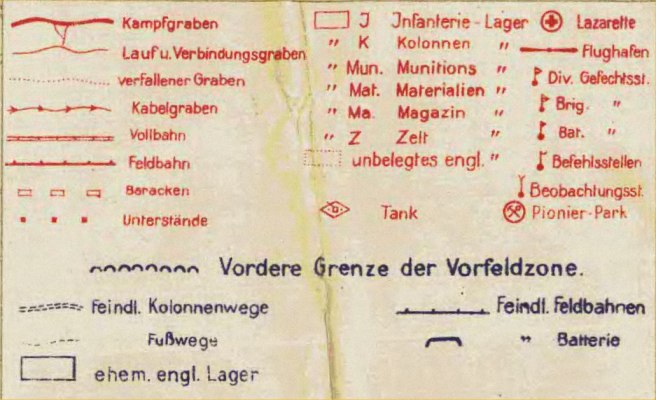

    ...2. German...


    Attached Files:

    • 4.jpg
      File size:
      50.7 KB
      Views:
      1,175
    • 5.jpg
      File size:
      61.3 KB
      Views:
      1,020
    • 6.jpg
      File size:
      93 KB
      Views:
      886
  3. Hill 40

    Hill 40 New Member

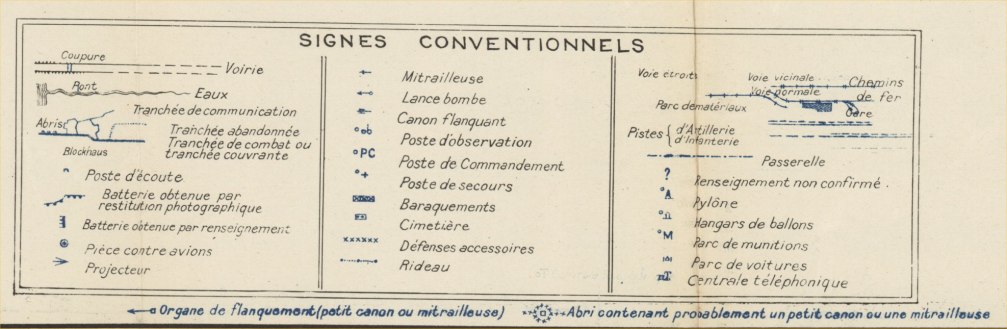

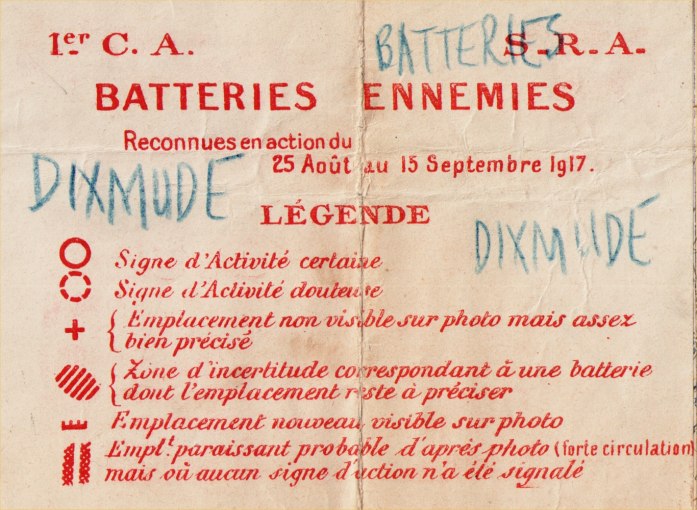

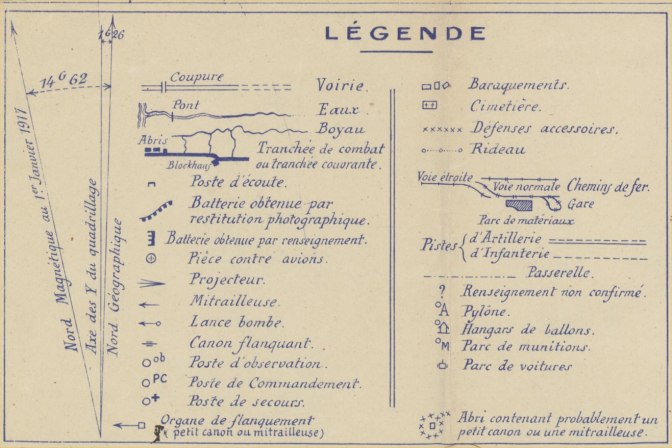

    ...3. French/Belgian...


    Attached Files:

    • 1.jpg
      File size:
      74.2 KB
      Views:
      925
    • 2.jpg
      File size:
      66.6 KB
      Views:
      887
    • 3.jpg
      File size:
      97.5 KB
      Views:
      866
  4. untitled

    untitled New Member

    Interesting, thank you for this.

  5. Akolt

    Akolt Member

    Thanks for this.

  6. Gin0710

    Gin0710 Member

    Interesting thing to know.

  7. Alexander

    Alexander Member
